Physics Systems

Ball and Ring - Gravesande

A concrete demonstration of the cubic
thermal expansion of a solid. Ring and ball
on chain with 2 wooden handles.
Length of the bar 130 mm, length of the
chain 100 mm. The ball passes through
the ring when cold but will not pass
through after being heated.

4200.10

Plastic Spring Balance - 1000g

Plastic Spring Balance (Dynamometer)
Range: 10009
In tubular transparent plastic case, with load hook and suspension ring.
The spring mechanism is clearly visible and zero adjustmentis incorporated.
Protection against overload.

4110.38

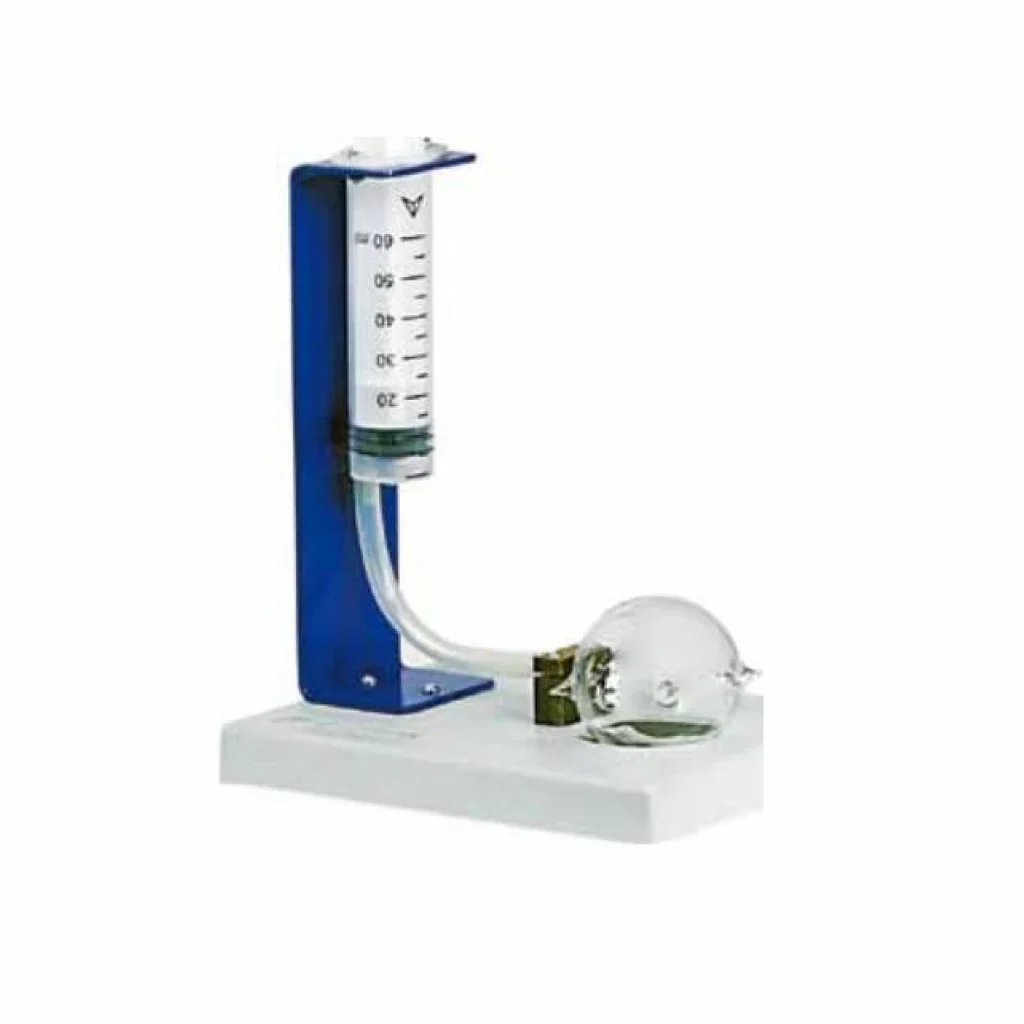

Pascal Law Apparatus

Pascal Law Apparatus (Pressure Syringe).
Cylinder is made from plastic and has educational aim for the verification of Pascal’s law. The whole apparatus is mounted on a sturdy base made of shock resistant plastic 150 x 200 mm.

4180.12

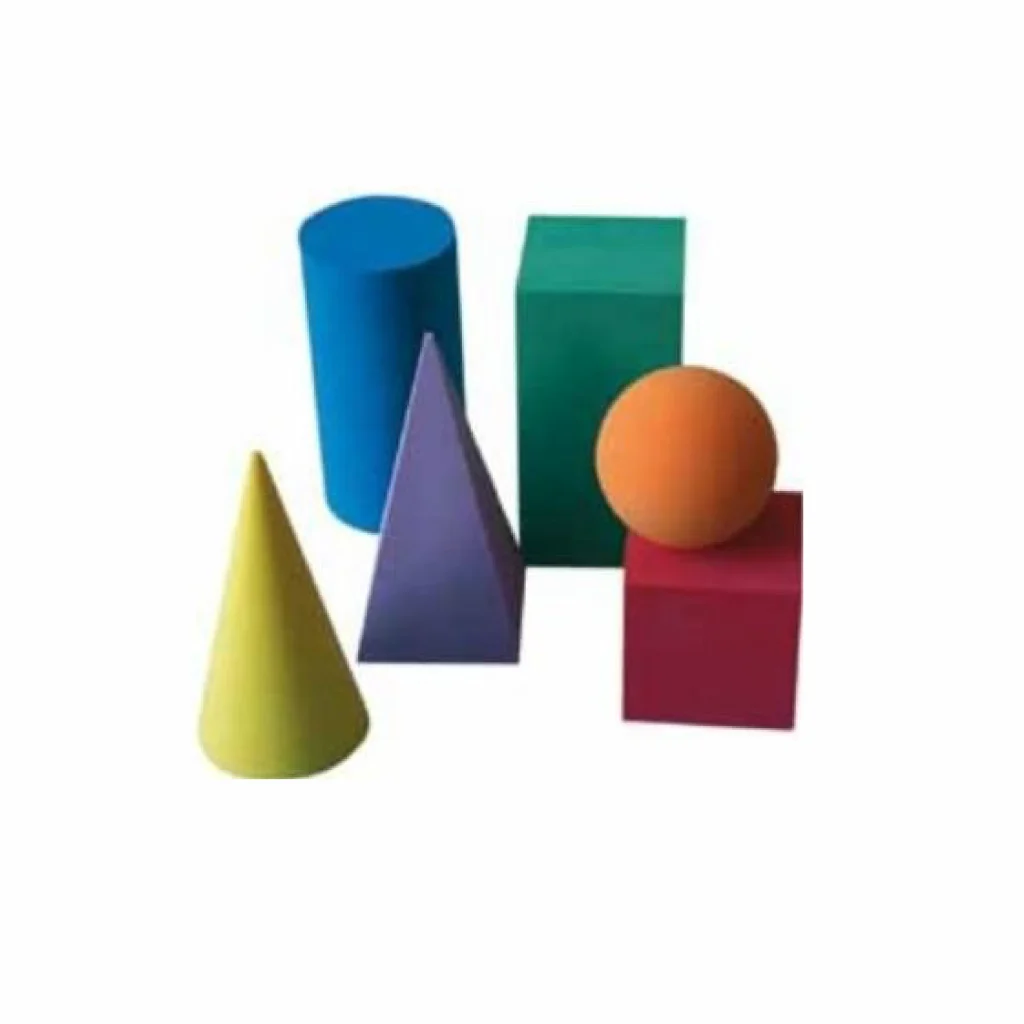

Set of Solid Models

Containing: 2 spheres approx. diameter 70mm., 2 cylinders approx. dimensions 70 x 140 mm. diameter x height, 2 cones approx. dimensions 70 x 140 mm. diameter x height, 2 cubes length of each side approx. 70 mm, 2 pyramids approx height 140 mm, 2 parallelepipeds approx dimensions 70 x 70 x 140 mm. The solids have different colours.

4001.50

Bar and Gauge

For demonstration of solids expansion.
Steel bar 110 x 12 mm., length x diameter, on rod with wooden handle, overall length approx. 200 mm. U-shaped gauge, sliding fit over ends of bar, with holes 12 mm. bore.

4200.15

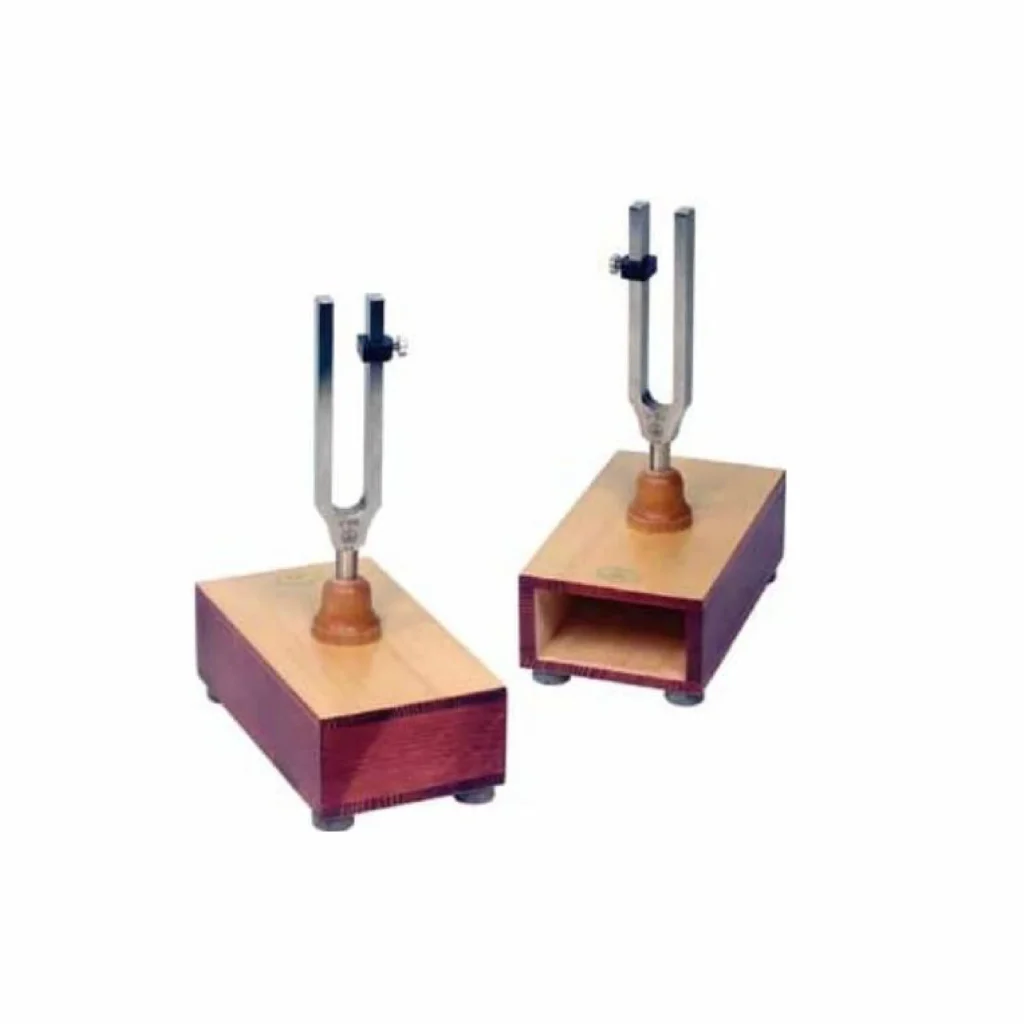

Pair of LA3 Tuning Forks

Frequency 440 Hz, on resonance boxes, with sliding masses on prongs for minor adjustment of frequency.
Among the most effective experiments with this pair of tuning forks are those dealing with resonance, interference, and beats.
Complete with hammer

4317.40

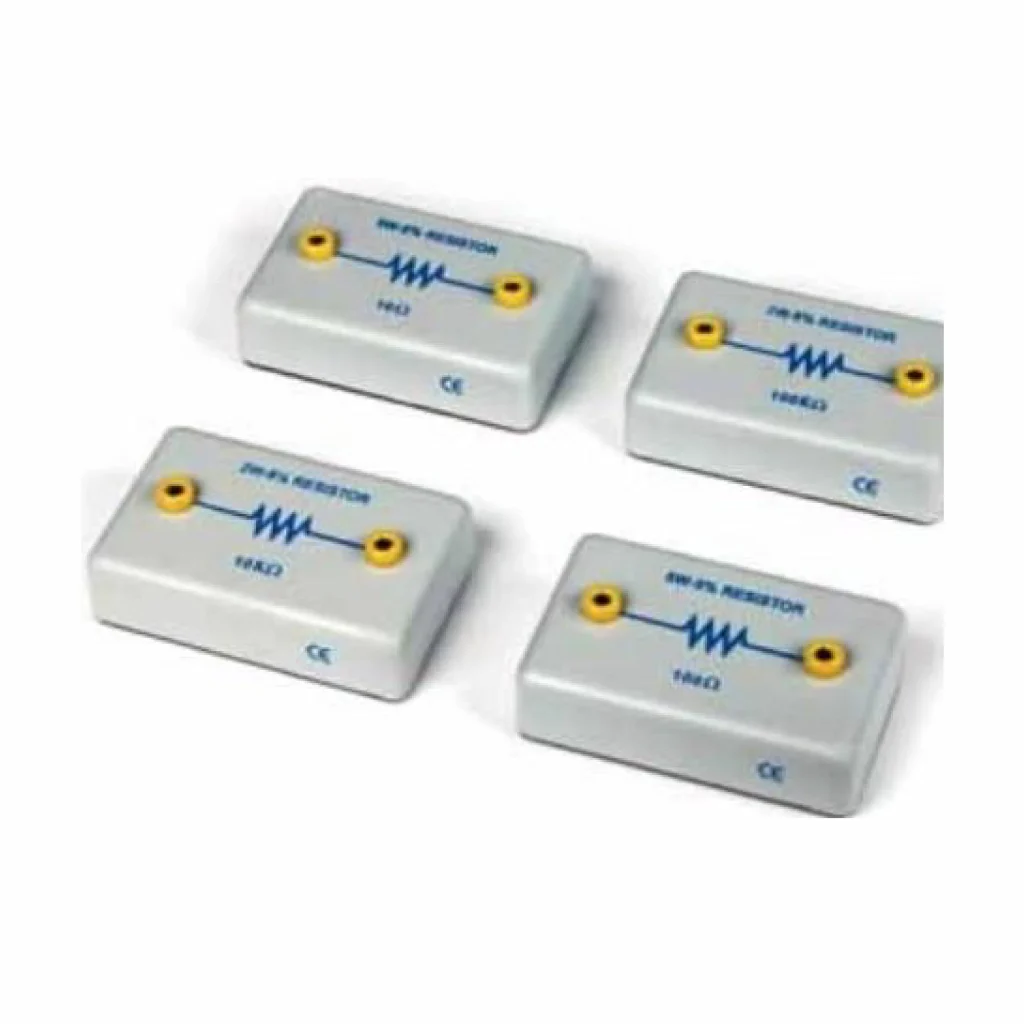

Set of Resistors

In plastic housing dimensions 57x90x20 mm with 4 mm sockets.
With imprinted symbol and resistance value. Max power 2 W, accuracy: 5%.
The set comprises one each of the following:
• CODE: 4693.69 – Resistor 10 O
• CODE: 4693.73 – Resistor 100 0
• CODE: 4693.81 – Resistor 10 k 0
• CODE: 4693.85 – Resistor 100 k 0

22004.001

Mounted Electric Ammeter Set, A.C. - D.C.

Mounted Electric Ammeter Set, A.C. – D.C.
Moving coil type, class 1.5, on high impact plastic housing, for measurement on low voltage circuits
(max 50 V). Input via 4 mm.
sockets. Scale approx. 60 mm. long.
Dimensions: 135 x 100 x 55 h mm.
Composed as follow:
A.C. Ammeter, range 0 + 5 A
D.C. Ammeter, range 0 + 1A and 0 + 5 A

22002.001
