Why Lab Mobile 2020
The Mobile Science Laboratory turns in the blink of an eye a classroom into a laboratory: it provides an acid resistant worktop, an autonomous system for providing and disposing of water and self-sufficient burners saving investment cost for facilities dedicated to laboratories with all needed supplies.
The lab mobile’s cart includes on its frontal panel a 15- 0 V power supply, a digital voltmeter and digital ammeter saving costly investment in low-voltage power supplies and related electrical measuring devices.
The Tema Lab Mobile® are CE certified and are the only ones in their category conform to EN 13150 which regulates size and security requirements for lab tables and cabinets.
Innovations and Advantages
PROBLEM
Many facilities do not have laboratories equipped with water and gas. Investment cost of building dedicated to laboratories with benches, gas system, water and electricity.
Costly investment in low-voltage power supplies and electrical measuring devices.
Difficult to store the variety of materials needed for the labs (dispersion, risk of breakage and theft).
Problems related to the safety of students during labs.
Availability and consistency of electricity in facilities (electricity not available, cuts and load shedding, power surges, etc...).
Difficulties for teachers in the implementation of labs due to the lack of lab technicians and waste of time for setting up experiments.
Significant investment by a non-rational choice of matching type of equipment / optimal amount.
SOLUTION
The Lab Mobile can turn in the blink of an eye a classroom into a laboratory. It provides an acid resistant worktop for 4 to 6 students, an autonomous system for providing and disposing of water, a gas burner and a spirit lamp.
The lab mobile’s trolley includes on its frontal panel a 15- 0 V power supply, a digital voltmeter and digital ammeter.
The Lab Mobile offers large lockable drawers equipped with shockproof foam pods to accommodate every component. Breakages and losses are limited and control and storage after each lab is facilitated.
The Lab Mobile offers a fire extinguisher in case of fire and first aid kit in case of accident.
The Lab Mobile, coupled with a solar panel, regulator and batteries allows you to calmly carry on the labs in areas without electricity or in case of a power failure or load shedding. It incorporates protection against overvoltage with fuse.
The mobile laboratory’s trolley comes with a manual clearly showing all the details needed for assembling more than 120 experiments. Average mounting time of experiments is just 8 minutes.
The Lab Mobile offers the optimal quantities to carry on the necessary program controlled learning experiences, thereby reducing the cost of investment.

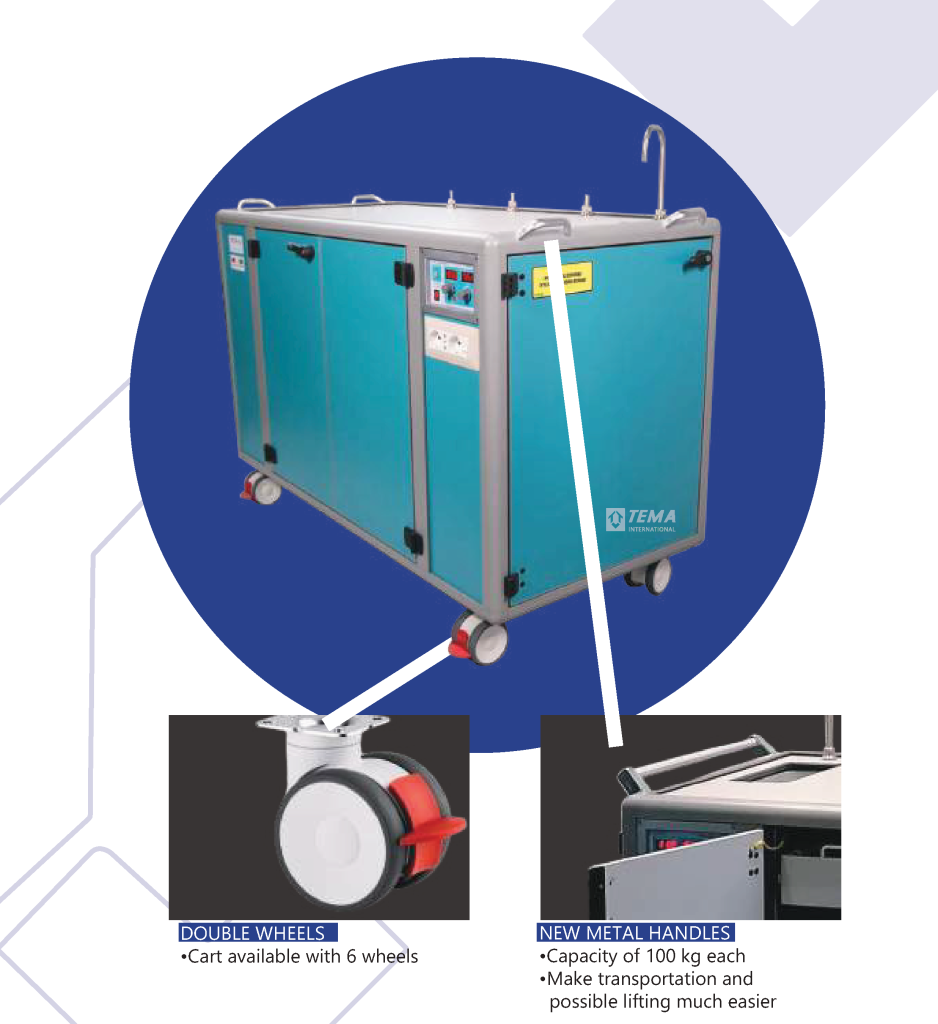

Air Cart 3.0
tema Lab Mobile, the world-renowned solution to the issues hindering your lab activities, is now even better. tema lab’s Lab Mobile comes now with the completely redesigned Air Cart 3.0. Sturdy and reliable as before but 50 % lighter thanks to the use of high strength aluminum honeycomb composite panels, Air Cart is furthermore scratch and corrosion resistant.
Panels used in the Lab Mobile consist of a central honeycomb aluminum core, covered on both sides with aluminum foils
– The three components are joined together with special high-strength adhesives
– On the external surface of the panel is also applied a finish in plastic laminate, while the inner surface is powder
coated
– Honeycomb panels offer several and important benefits:
- Extreme lightness and strength
- Excellent flatness and stability.
- Excellent chemical resistance.
- Wide temperature range of use, from 40- °C 110+ °C.
- Excellent aesthetic and functional finishing.
It features totally restyled compartments and drawer’s system for an easier and safer access to tema lab’s educational materials included inside. Latest generation handles and wheels now make it even easier to move it wherever you want to transform a classroom into a real educational laboratory.
Description and technical specifications
tema Lab Mobile® cart comes with a universal power supply equipped to operate with any user voltage – just connect the cart to an electrical outlet, flip the switch and you are ready to go. The work top is HPL . The sink is acid-resistant polypropylene (height/depth/width 15x30x20cm approx.), the water tap is stainless steel and folds down if necessary.
The cart has 4 double wheels, two provided with brakes.
Control Panel
1.One power switch
2.One green LED when main power supply is on 3.One yellow LED when optional power supply is on 4.One water pump button with LED
5.One switching-mode power supply with the following characteristics:
•Output voltage range: 12 – 0 Vdc
•Output current range: 8 – 0 A
•Available 15-0 Vdc / 40-0 A
•One digital voltmeter and one digital ammeter •Short circuit and overload protection.
The cart has 4 double wheels, two provided with brakes.
Security System
- One portable powder extinguisher (1kg)
- One first-aid kit
Electric Panel
The electric panel includes the following:
- One 125/110 VAC socket; 60/50 Hz
- One 240/220 VAC socket; 60/50 Hz
- One general fuse 5A with broken fuse alarm light •Available 4 USB ports.
Electric Panel
- The Laboratory is also provided with two burners: one supplied by a 240g GPL cylinder and one spirit burner.
